ANTENNA CENTRAL

Struggling with where to mount all those antennas?

The Antenna Central post offers an attractive and convenient answer to that problem.

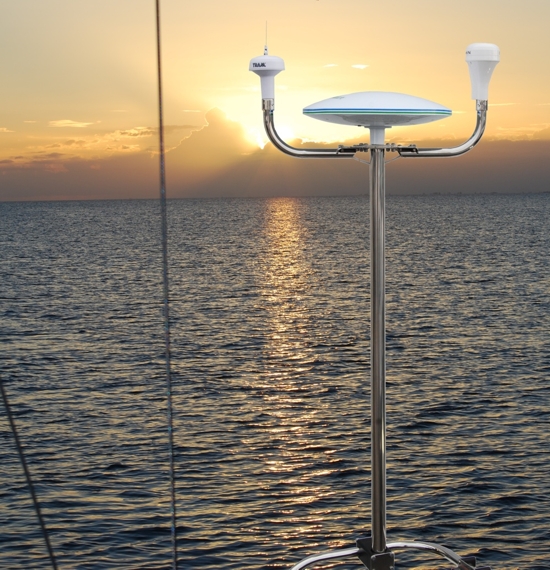

Shakespear TV on antenna central

LOW IN PROFILE - The Antenna Central is a dedicated antenna post capable of accepting as many a five antennas ...all in one central location.

CUSTOMIZED FIT - The swivelling base with its universal ball joint allows for a custom fit to almost any deck. The securing rail mount supports the post to the stern rail. These design features are similar to our davits and outboard hoist. Therefore, a wide range of custom bases and rail mounts are available to suit most any installation.

EASE OF INSTALLATION - Once the ideal location has been determined, you simply attach the rail mount with the 4 bolts provided. Then slide the post throught the mount and screw it to its base. Align the post vertically, mark the base holes, drill, bed the base and bolt through. It's that easy!

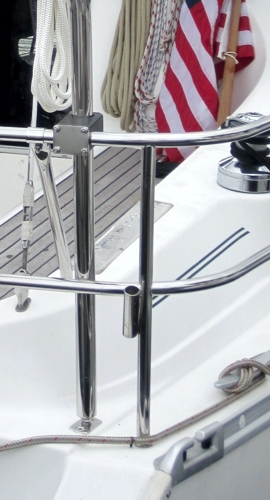

Base and rail mounting photo

The Antenna Central includes:

KVH M1 on a Antennas central post

Highly polished 1-1/2" diameter Type 316 stainless steel post.

Offered in two heights, 66" or 78".

Top plate provides a mounting position for one antenna on center, and is pre-drilled to accept four 1" tubular antenna arms with industry standard 1"-14 threaded mounts. It is available in two configurations.

Rail mount atachment for stern rail tube sizes 1" to 1-1/4". Different offsets available - (see KatoLift prefit form).

Deck base standard. Alternatives (including transom bases) available -(see the davit bases here).

Antenna Central post $565.00

Antenna arms (each) $112.00
