Transom mounted davits

Powerboat Davits - Voyager model

The 'VOYAGER' model is a lightweight, streamlined davit that has been designed to enhance, rather than distract from the appearance of your boat.

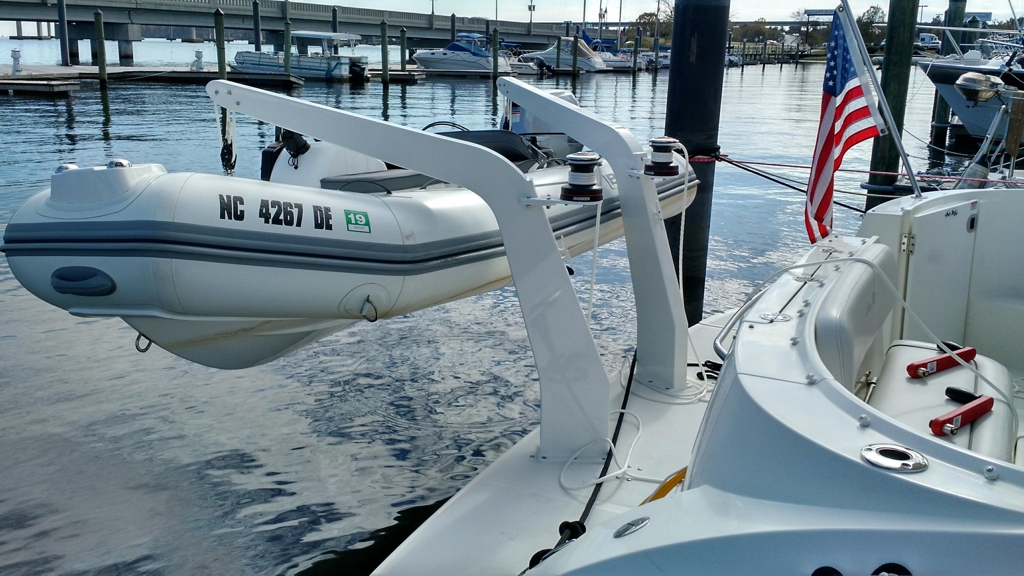

ALM 435 with Voyager davits Duffy 35 with Voyager davits. Zimmerman 36 with Voyager davits. Antares 13 with Voyager davits. Undercut transom

click on photos to enlarge

It's unique features include:

  • An all-welded aluminum box construction for maximum strength and minimum weight.
  • An eye pleasing streamlined shape, designed to suit any size dinghy with a six foot beam and under.
  • Internal 6:1 purchase system with Harken roller bearing blocks and pre-stretched 3/8" braid to make it easy on the hands.
  • A durable Awlgrip finish in Off-White.
  • Safe Load 420 lbs. each davit arm.
  • Each davit weighs only 28 pounds with tackle.
  • Built-in cam cleats for convenience when hoisting.

Price: $6,660.00, Custom colors - add $196.00

Also available - Voyager davits with Winch:

3:1 purchcase leading to winch

Price: $7,940.00, Custom colors - add $196.00

taller Voyager davits base hanging over the edge Transom base to mount davit on
An additional 10" can be added to the height to make up for mounting low (eg.on a step etc.) Price: $1,058.00/pr.
This is a 'wrapped' coaming base with a welded gusset. This may be desired when there is not quite enough room to accomodate the Voyager's 10" base Price: poa/pr.
Custom designed to suit the intended vessel's transom they provide a mounting platform for the Voyager davits. Used when mounting on deck is not practicle. Price: $1,480.00/pr.

Dimensions:

Close-up of winch on Voyager davit
